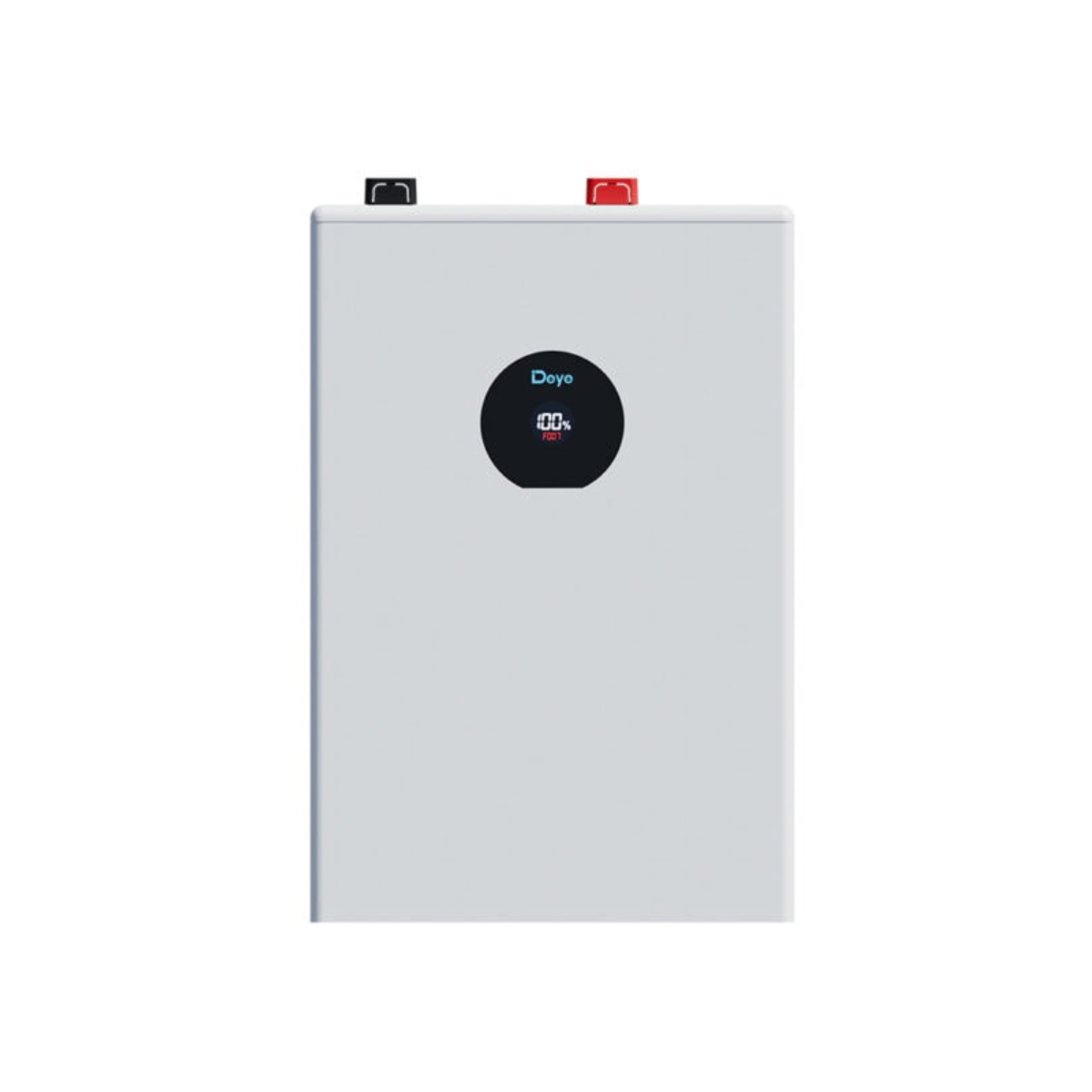

Deye SE-F5-PRO C Version Battery LifePO4 51,2V OffGrid LV
Deye SE-F5-PRO Battery LifePO4 51,2V OffGrid LV
High-performance with Built-in BMS for Energy Storage in Home, Factory, Farm, Hospital, School, etc.
Deye SE-F5-PRO Battery LifePO4 51,2V OffGrid LV

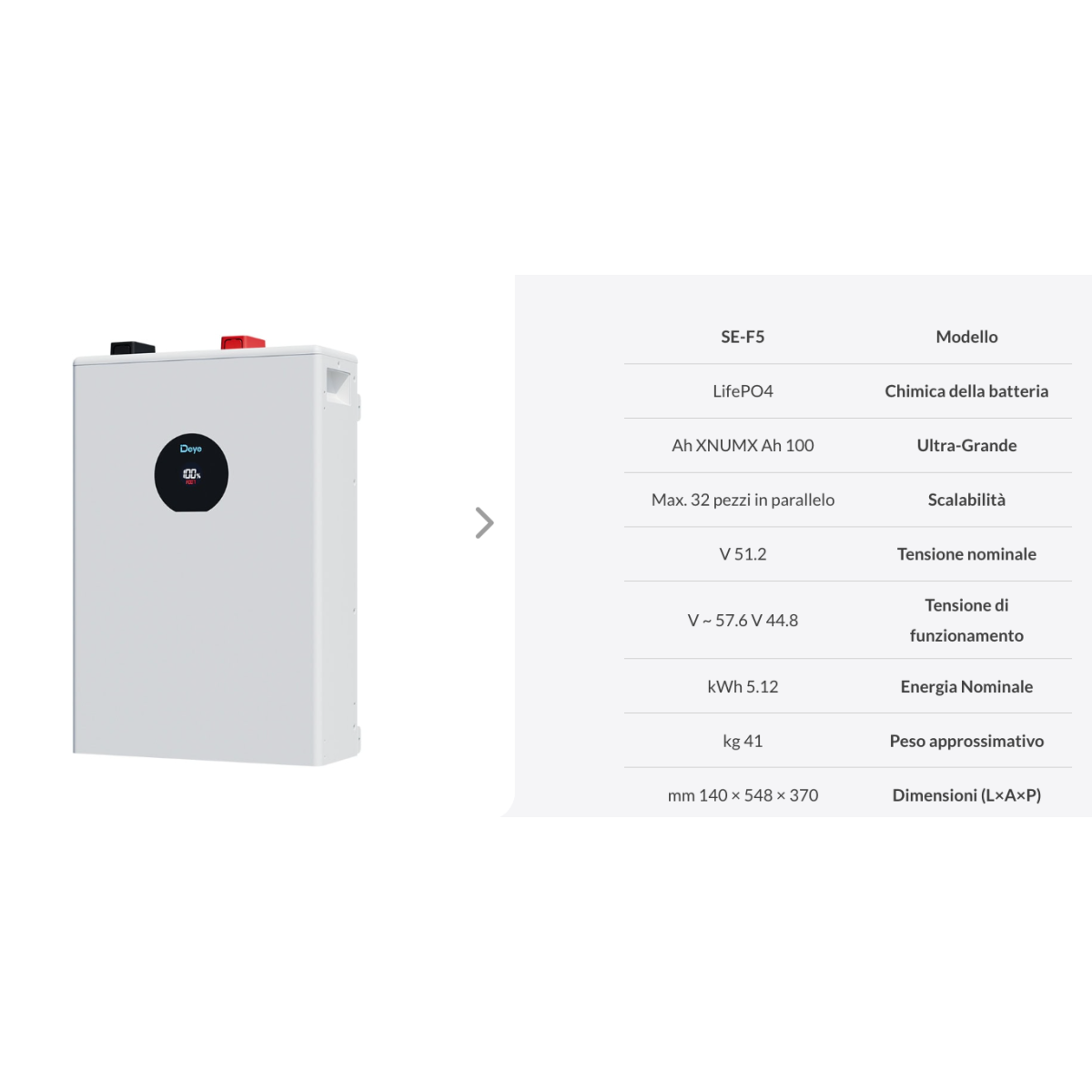

Deye SE-F5 Pro Battery Module – 5.12 kWh
The Deye SE-F5 Pro energy storage system is an advanced solution for residential applications. Based on lithium iron phosphate (LiFePO₄) cells, it offers high safety standards, long life, and optimized performance. The integrated PACK design allows for greater energy density and efficient space management.
With the ability to handle charge and discharge cycles up to 1C and an advanced BMS with active fuse, the SE-F5 Pro ensures complete protection, reliability, and operational continuity.

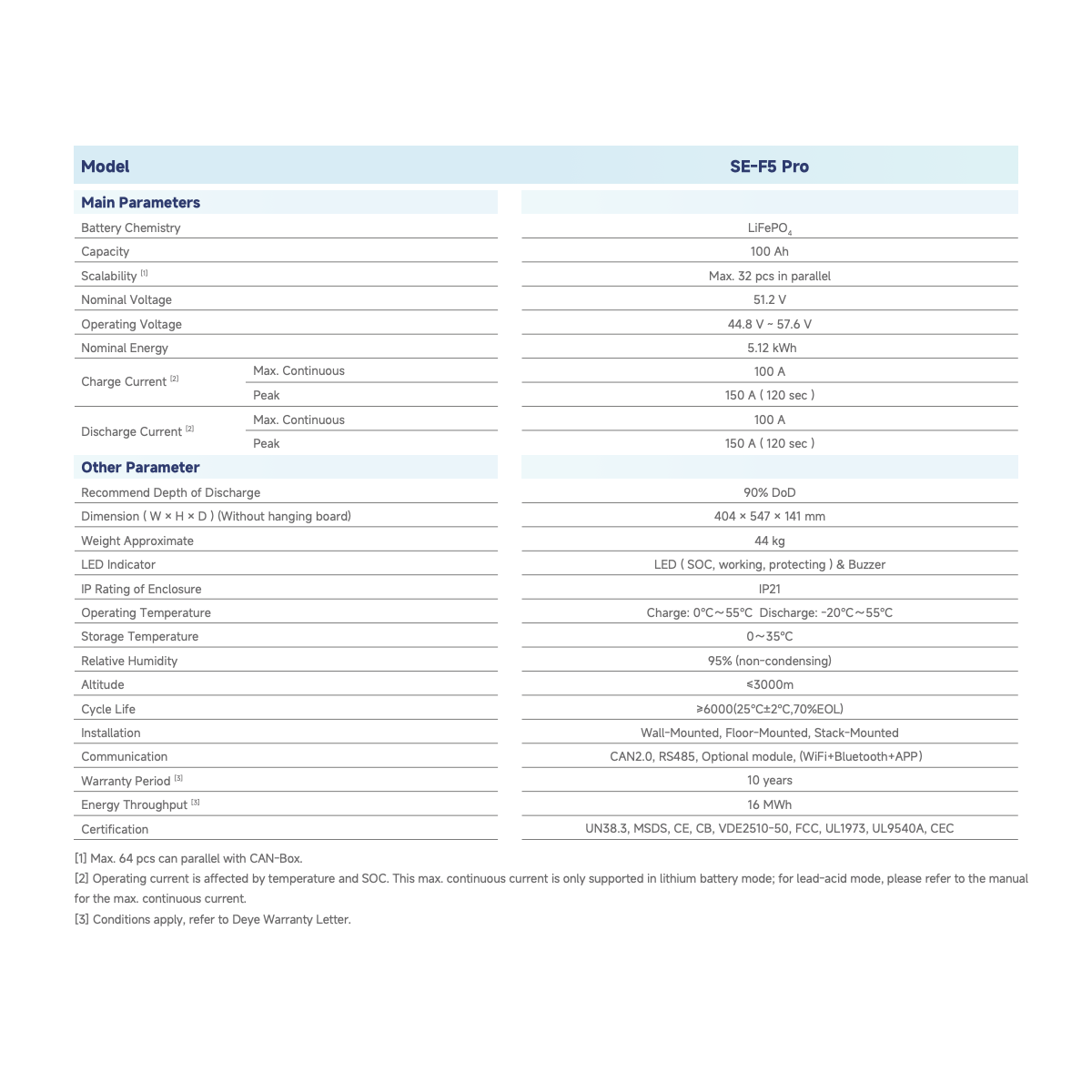

Main Features
Nominal capacity of 5.12 kWh per module, expandable up to 32 units in parallel (up to 64 with CAN-Box)
Maximum charge/discharge current of 100 A, with a peak current of up to 150 A (for 120 seconds)
Wide operating temperature range: -20°C to 55°C (discharging), with natural cooling
Long service life: over 6,000 cycles with 70% residual capacity (EOL)

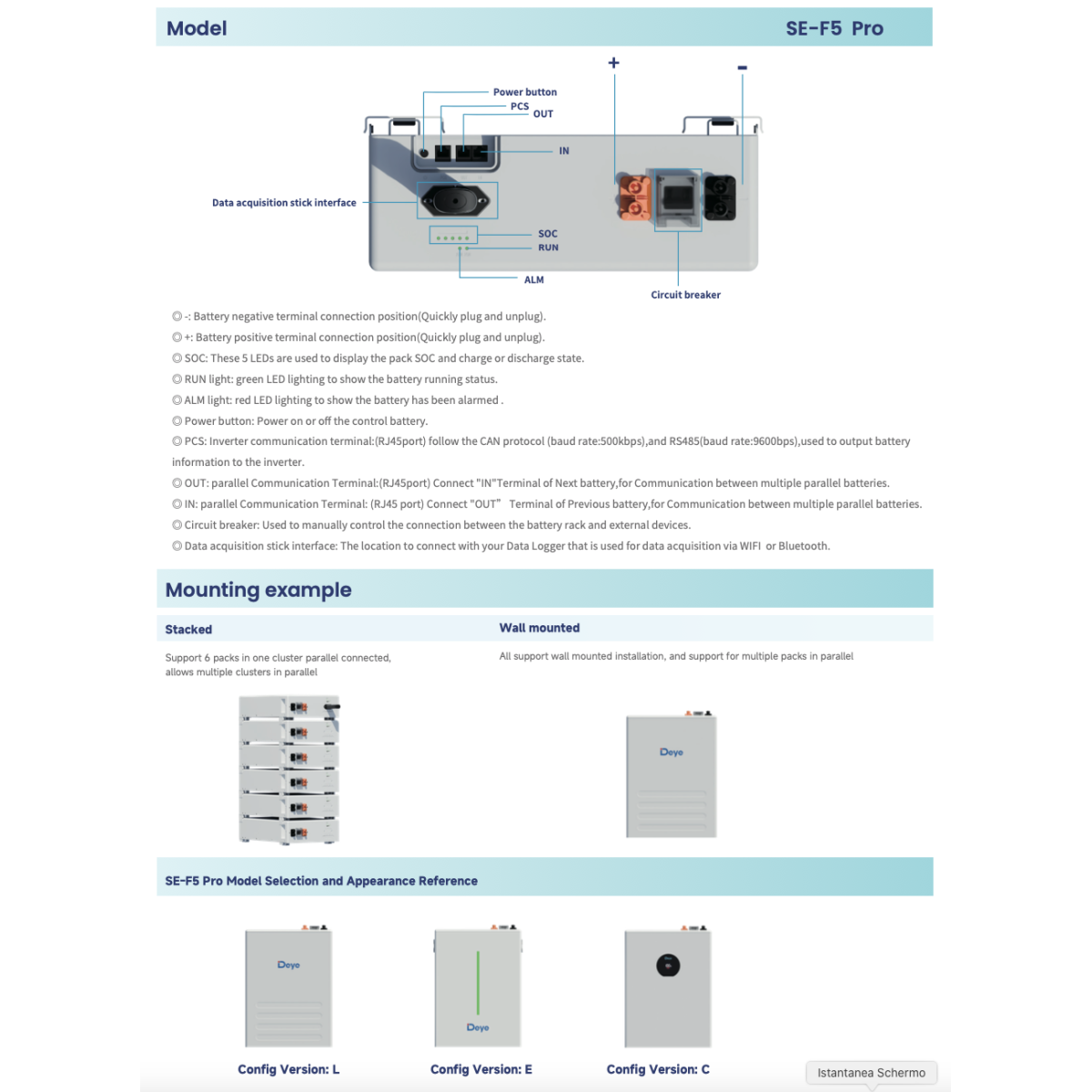

Flexible installation: wall-mounted, floor-mounted, or stackable

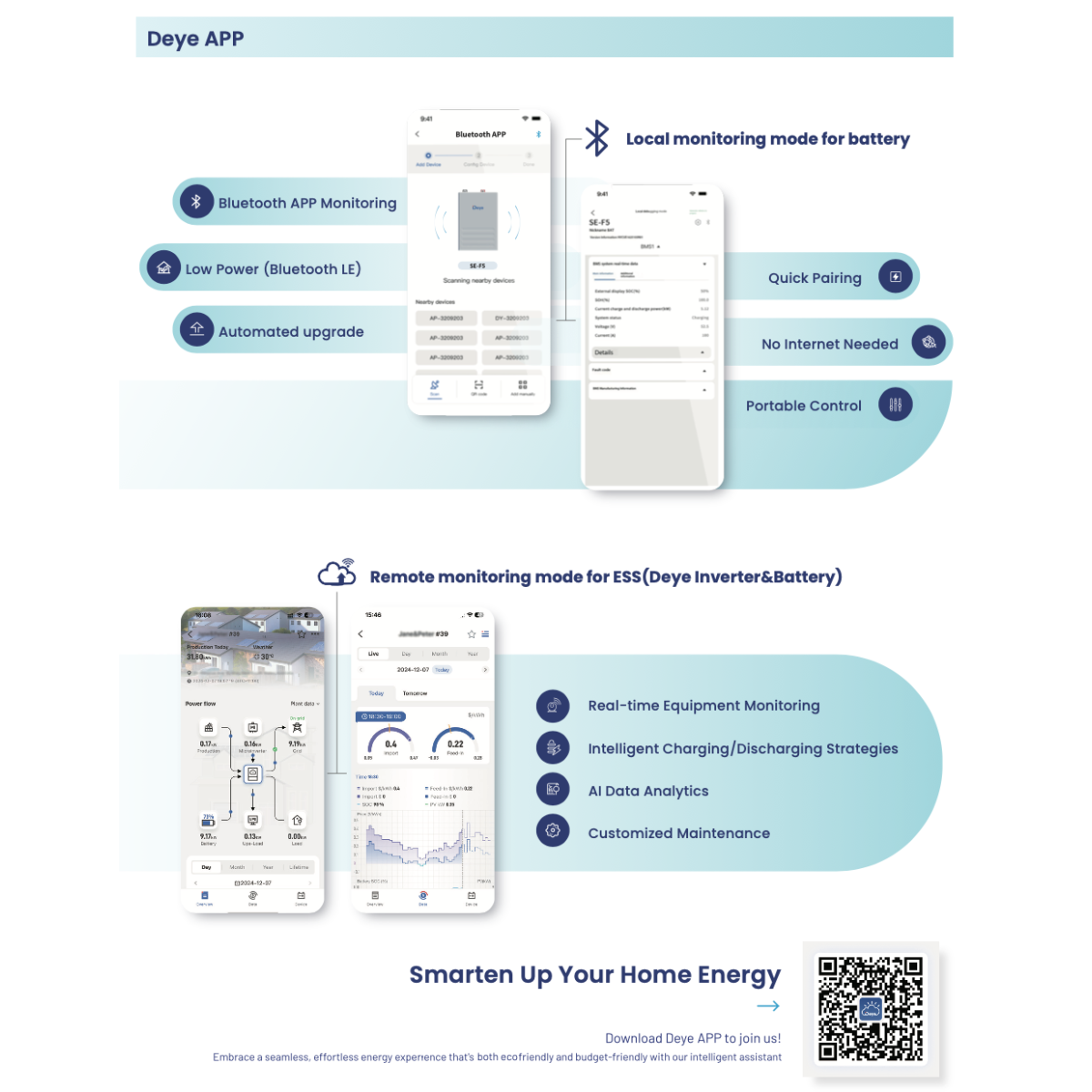

Advanced communication: CAN 2.0, RS485, with WiFi module + Bluetooth + dedicated app
Who is it for?
The Deye SE-F5 Pro is the ideal solution for those seeking a reliable, efficient, and scalable home storage system. Perfect for optimizing self-consumption, increasing energy independence, and intelligently managing energy flows, it can be easily integrated into new or existing photovoltaic systems.
IMPORTANT NOTE: THIS PRODUCT IS STANDARD APPLIED WITH ITALIAN VAT AT A RATE OF 22%.
WE CAN APPLY REDUCED VAT TO 10% IN THE CASES PROVIDED FOR BY LAW
(UPON RECEIPT OF A DECLARATION OF RESPONSIBILITY SIGNED BY THE CUSTOMER, DOWNLOADABLE FROM OUR WEBSITE, AT THE BOTTOM OF THE PAGE).
FURTHERMORE, FOR INVOICING AND DELIVERY OUTSIDE ITALY (VAT NUMBERS REGISTERED WITH VIES) WE CAN INVOICE WITHOUT VAT.
Specific references
- MPN
- DE-SEF5PRO
