Solis S6-GC100K-AFCI 100kW Three-Phase Inverter 167.1A 10 MPPT 20 IN

Solis S6-GC100K-AFCI 100kW Three-Phase Inverter 167.1A 10 MPPT 20 IN

The Solis S6-GC(80-125)K three-phase inverter is a new S6 model designed for C&I and utility-scale photovoltaic projects. Its input current reaches up to 21A, making it perfectly suited to a variety of high-power PV panels. The maximum supported DC/AC ratio is 150%. Support for PLC communication, optimized AC and DC cable design, intelligent I-V curve scanning, and remote O&M functions effectively reduce system costs, simplify O&M, and improve system efficiency. It is ideal for reducing costs and improving efficiency in PV system projects. Furthermore, the product has an IP66 rating, making it ideal for use in complex and harsh natural environments.

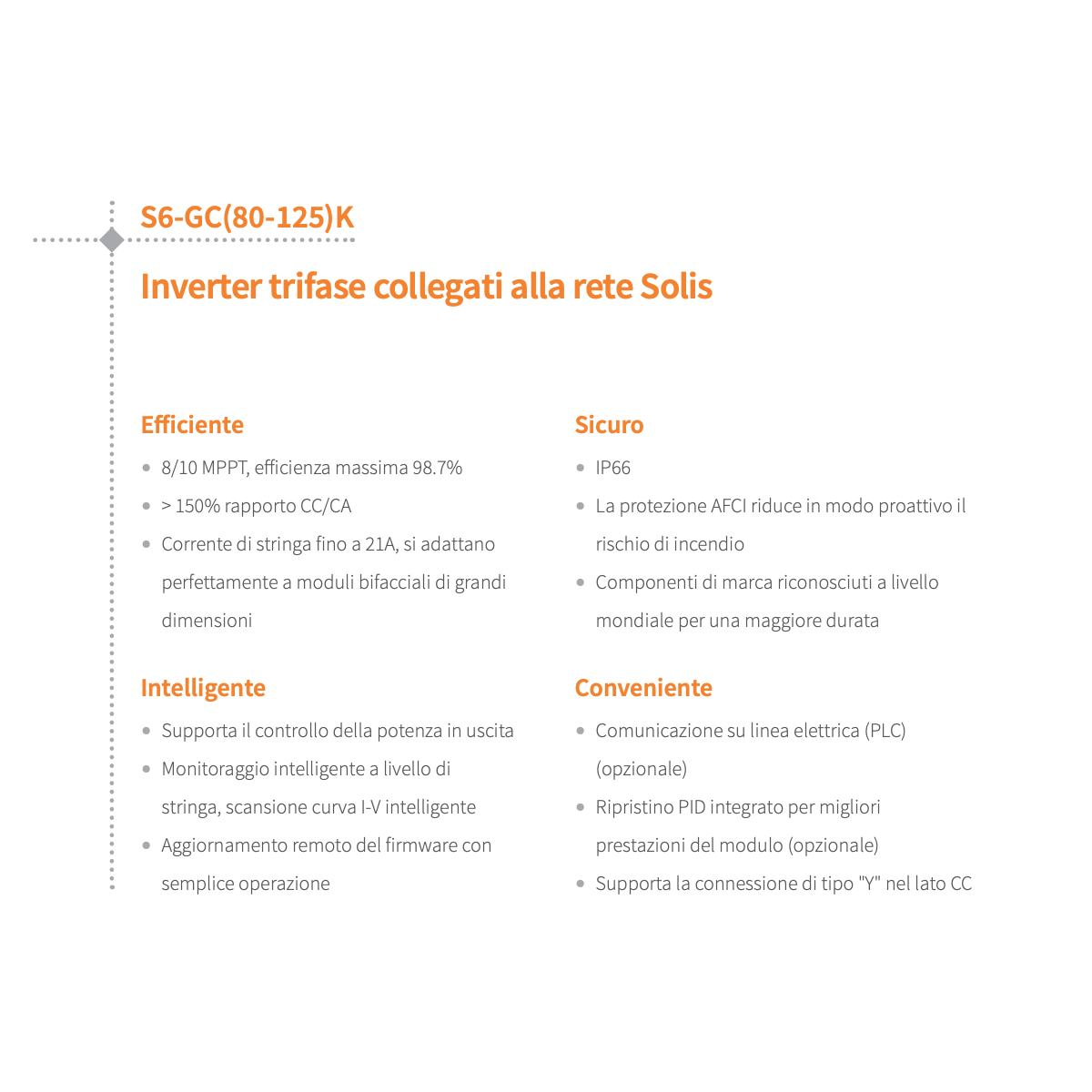

Features

- 8/10 MPPT, maximum efficiency 98.7%

- IP66

- Power line communication (PLC) (optional)

- Simple remote firmware upgrade

- Integrated PID reset for improved module performance (optional)

- Globally recognized brand components for longer life

- > 150% DC/AC ratio

- Supports output power control

- Supports "Y" connection on the DC side

- AFCI protection proactively reduces the risk of fire

- Intelligent string monitoring, intelligent I-V curve scanning

- String current up to 21A, perfectly suited for large bifacial modules

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
